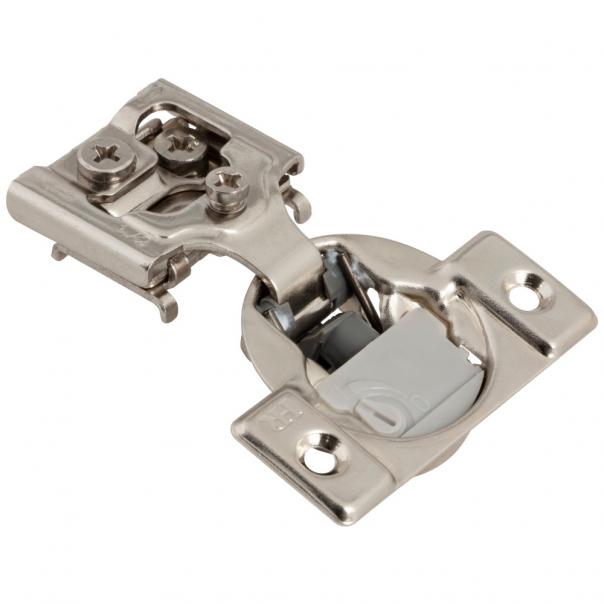

HR MAX™ 105° 1/2" Overlay Heavy Duty Adjustable Soft-close Compact Hinge without Dowels
List Price
$5.15
In Stock
Part
9390ADJ
List Price
Description
HR Max = Quality backed by Lifetime warranty Tooled soft-close speed adjustment Streamlined glide channels reduce friction and wear Tested and proven soft-close mechanism will last the life of the hinge Grade 2 ANSI/BHMA certified to 50,000 cycles and 6-way adjustability
More Information
| FEATURES |
|---|
| Easy soft-close speed adjustment |
| Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications |
| One piece compact assembly with vertical, horizontal, and depth cam adjustment |
| #7 x 5/8" pan washer head screw recommended for installation (item # 7X0580WCQ) |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 9390ADJ |
|---|---|
| Closing | Soft-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe |
| Pivot Type | Single |
| ADA Friendly | No |
| Packaging Type | Small Package |
| Degree of Opening | 105° |
| Overlay | 1/2" |
| Overlay Adjustment | +2 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 9390ADJ Series |
| Finish | Nickel |
| Mount Type | Screw |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Installation | Screw |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002502023 |
