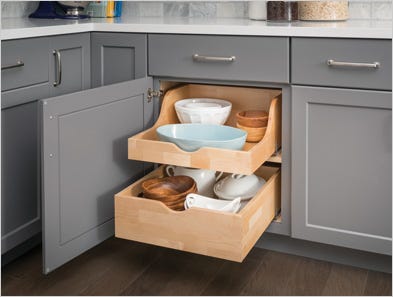

Custom White Birch Dovetail Rollouts

Custom Dovetail Drawer Boxes

Our drawer boxes, your quality

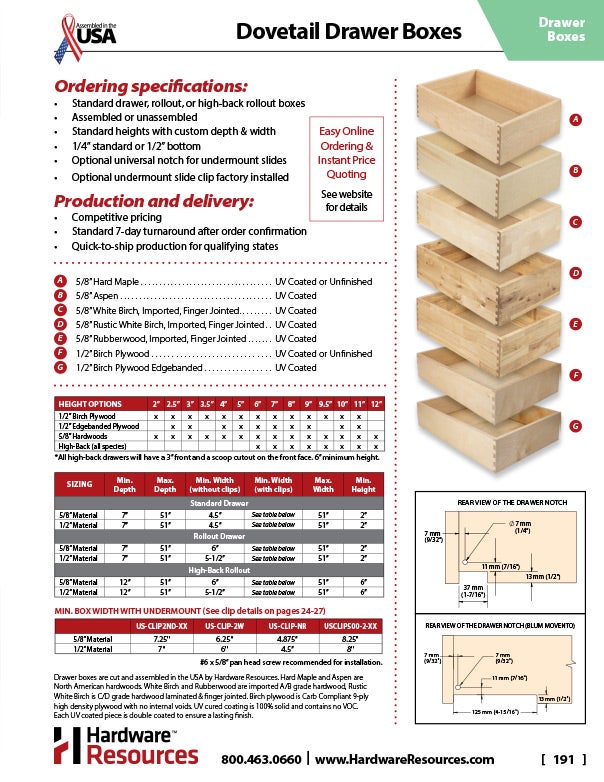

Ordering Guide

Stocked Products

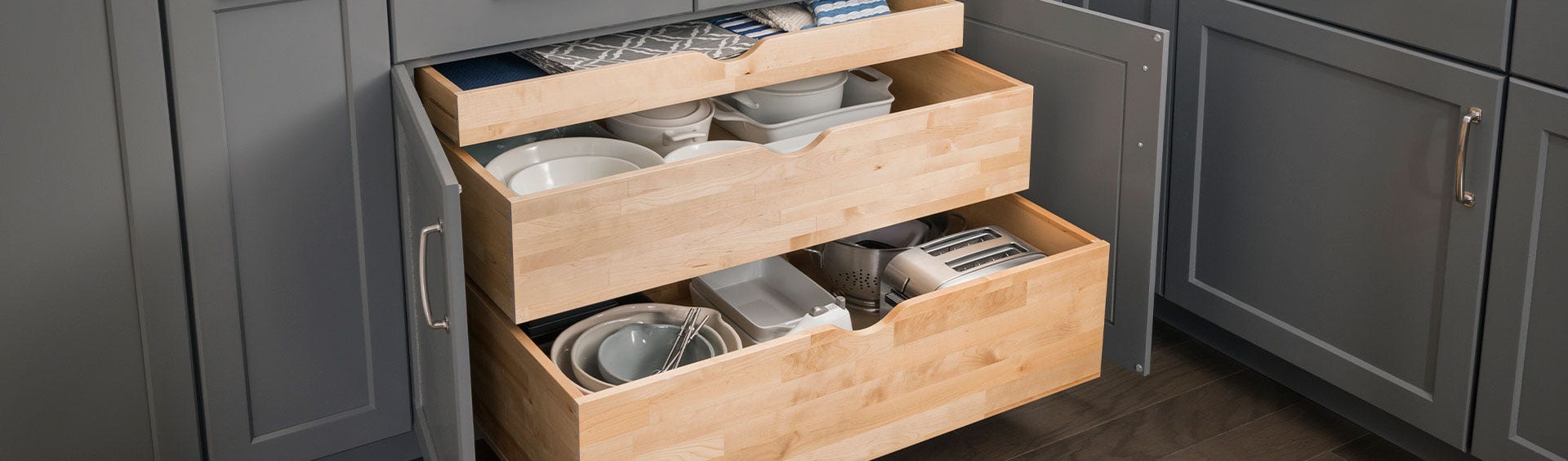

Explore Dovetail Drawer Boxes

See the drawer box types, look closely at the different wood materials, and learn how to calculate drawer box sizes with our ordering guide below. Check out custom laser engraving options, or peruse the products we keep already in stock.

DRAWER BOX TYPES

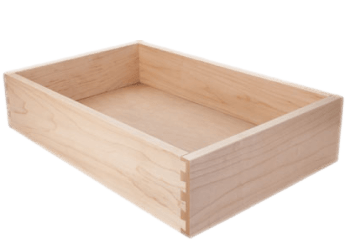

Standard Box

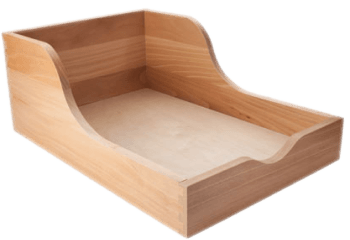

High Back Rollout

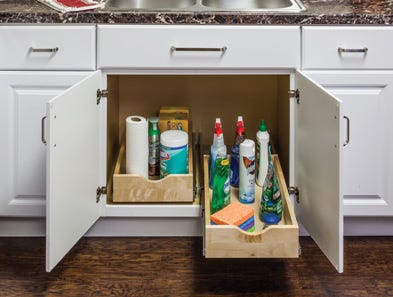

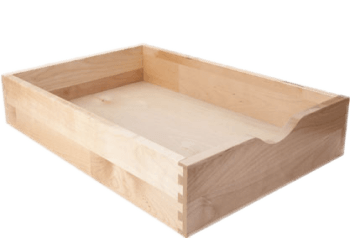

Rollout

DRAWER BOX MATERIALS

Hard Maple

Aspen

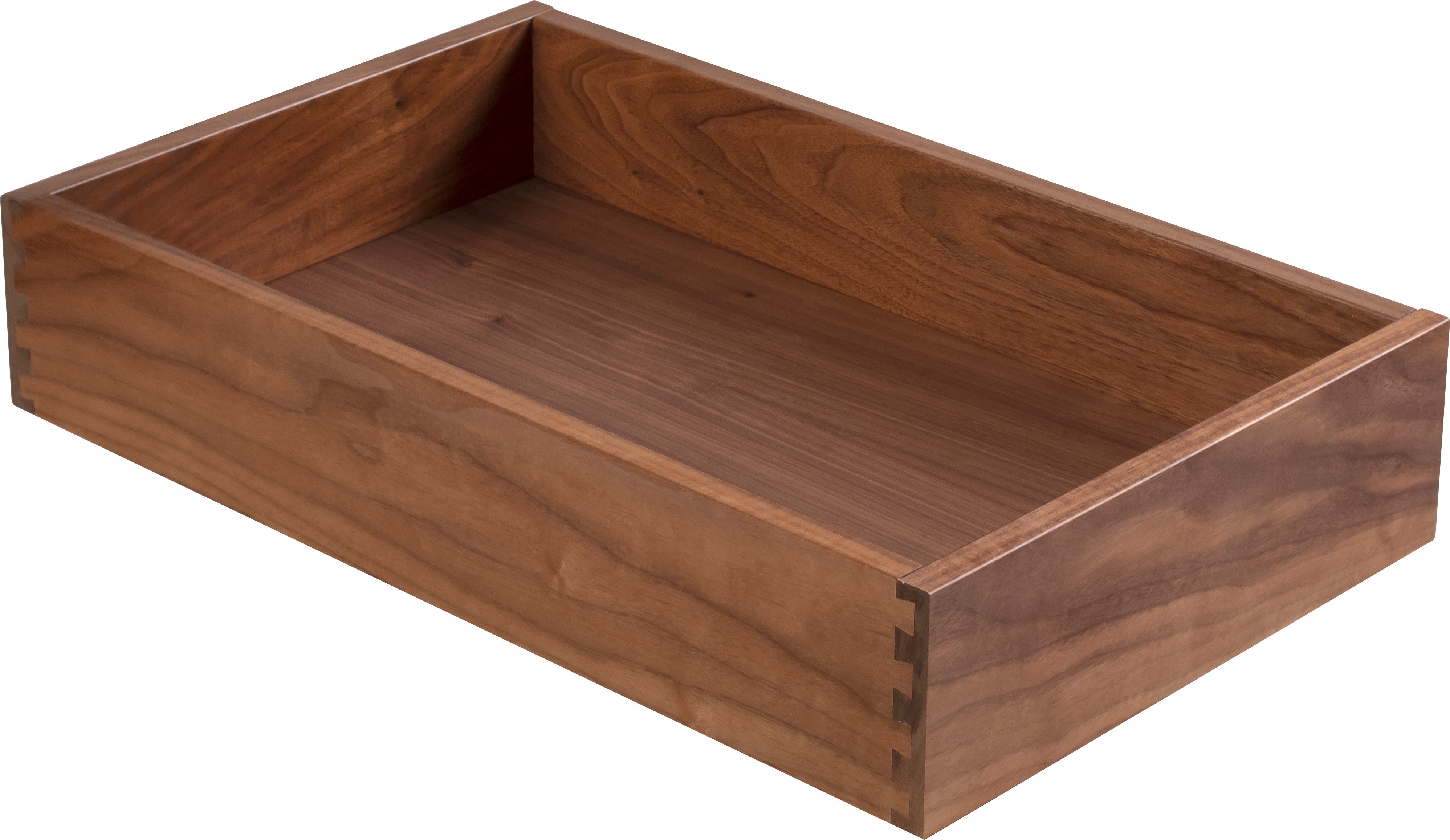

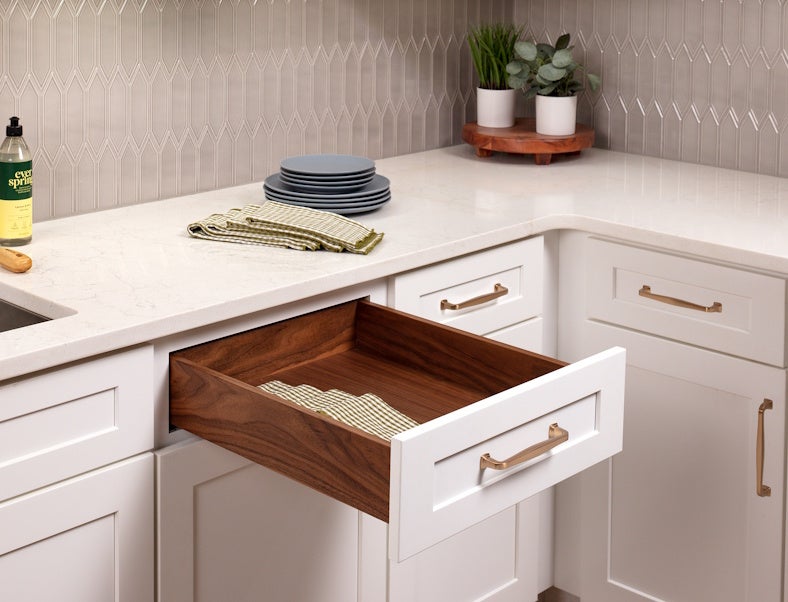

Walnut

White Birch

Rustic White Birch

Rubberwood

Baltic Birch Plywood

Edgebanded Baltic Birch Plywood

Drawer Box

Stocked Drawer Box Products

Finished Aspen Drawer Box Material
White Birch Finger Jointed Drawer Box Material
U-Shape Drawer Box
U-Shape Rollout for Vanity Cabinets
Wood Rollout Drawer

Drawer Box CALCULATING DRAWER BOX SIZES

5/8" Hardwood Drawer Side Material

WIDTH

When using HR USE Series undermount slides, OVERALL WIDTH = DRAWER OPENING MINUS 3/8".
When using HR ball bearing or epoxy slides, OVERALL WIDTH = DRAWER OPENING MINUS 1".
When using another manufacturer's slide, follow the manufacturer's slide specifications using 5/8" drawer side material to calculate Overall Width.

HEIGHT

When using HR USE Series undermount slides, OVERALL HEIGHT = DRAWER OPENING MINUS 3/4".

LENGTH

When using HR USE Series undermount slides, the OVERALL LENGTH should equal the corresponding slide length (example: if using the USE21, the drawer depth would be 21").
When using another manufacturer's slide, follow the manufacturer's slide specifications using 5/8" drawer side material to calculate Overall Length.

1/2" Plywood Drawer Side Material

WIDTH

When using HR undermount slides, OVERALL WIDTH = DRAWER OPENING MINUS 5/8”.
When using HR ball bearing or epoxy slides, OVERALL WIDTH = DRAWER OPENING MINUS 1”.
When using another manufacturer’s slide, follow the manufacturer’s slide specifications using 1/2” drawer side material to calculate Overall Width.

HEIGHT

When using HR undermount slides, OVERALL HEIGHT = DRAWER OPENING MINUS 3/4”.

LENGTH

When using HR undermount slides, the OVERALL LENGTH of the box is the corresponding slide length MINUS 1/8” (example: 20-7/8” on a 21” slide).
When using another manufacturer’s slide, follow the manufacturer’s slide specifications using 1/2” drawer side material to calculate Overall Length.

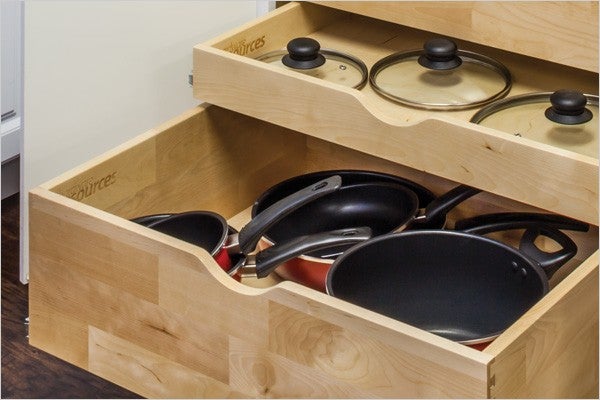

Drawer Box CUSTOM LASER ENGRAVING

Complimentary High Definition Laser Engraving

Simply provide a high-resolution file of your logo. We’ll do the rest!

Accepted Files

EPS, AI, PDF, PSD, JPEG, TIFF

Maximum Logo Size

1-1/2" tall x 6" long

Box Details

Minimum box height for engraving is 3".
Not available on high-back rollouts or boxes over 24" deep.
Placed on the front left inside edge of the box.
One logo per customer. Logos are kept on file for future orders.

Don't have a logo? Choose from our preselected fonts to customize your company name.
