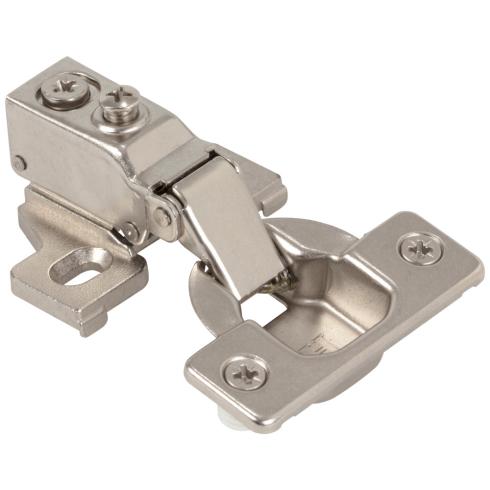

HR MAX™ 1/2" Overlay Cam Adjustable Soft-close Face Frame Hinge
List Price
$4.06
In Stock
Part
22855-7SFT
List Price
Description
HR Max = Quality backed by Lifetime warranty Robust die cast face frame plate securely grasps the frame and provides two attachment points Concealed soft-close damper One piece 6-way adjustable compact assembly with vertical, horizontal, and depth cam adjustment dual pivot point
More Information
| FEATURES |
|---|
| Dual Pivot Point brings the door closer to the cabinet reducing door gap. |
| Cold rolled steel with nickel plating |
| 45 mm boring pattern |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 22855-7SFT |
|---|---|
| Closing | Soft-close |
| Hinge Cup Bore Depth | 12.5 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Recommended Screws | #6 x 5/8" pan washer head screw (6X258017Q) |
| Cabinet Type | Faceframe |
| Pivot Type | Dual |
| ADA Friendly | No |
| Packaging Type | Small Package |
| Degree of Opening | 105° |
| Overlay | 1/2" |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 22855 |
| Finish | Polished Nickel |
| Mount Type | Screw |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Patent | 7594300 |
| Certification | ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012 |
| Installation | Screw |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002532044 |
