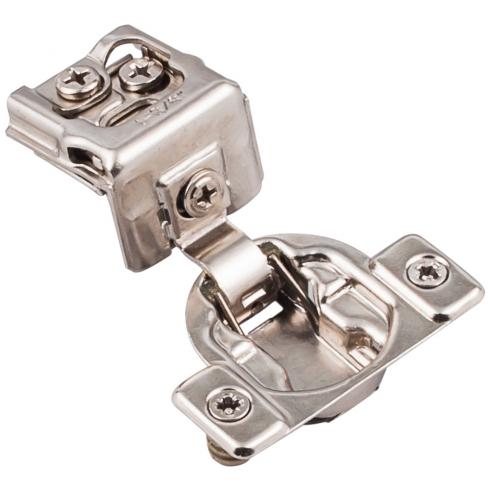

105° 1-3/8" Overlay Standard Duty Self-close Compact Hinge with Dowels
List Price
$3.63
In Stock
Part
4393-000
List Price
Description
Designed spring and arm for better support Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
More Information
| FEATURES |
|---|
| Single pivot point |
| 6-way adjustability |
| Cold rolled steel with nickel plating |
| #7 x 5/8" pan washer head screw (7X0580WCQ) recommended |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 4393-000 |
|---|---|
| Closing | Self-close |
| Cycles | 50,000+ |
| Hinge Cup Bore Depth | 10.3 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Recommended Screws | #7 x 5/8" pan washer head screw (7X0580WCQ) |
| Pivot Type | Single |
| ADA Friendly | No |
| Packaging Type | Small Package |
| Degree of Opening | 105° |
| Overlay | 1-3/8" |
| Overlay Adjustment | +2 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | Hardware Resources |
| Series | 4390 Series |
| Finish | Polished Nickel |
| Mount Type | Press-in |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Certification | Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles |
| Installation | Screw Expanding Dowel |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002532341 |
