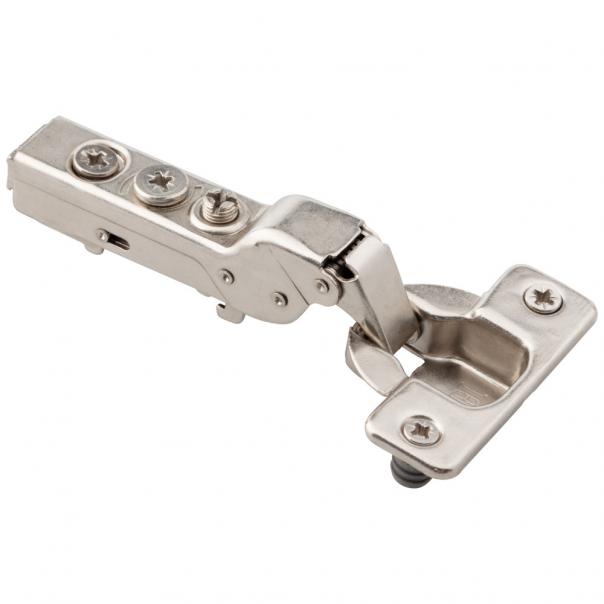

HR MAX™ 110° 9 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge with Press-in 8 mm Dowels
List Price
$5.44
In Stock
Part
1750.0179.25
List Price
Description
HR Max = Quality backed by Lifetime warranty Patented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the door Heavy duty spring and linkage system Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles 9 mm Crank
Please wait...
More Information
| FEATURES |
|---|
| Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications |
| Hinge and plate provide 6-way adjustability |
| Cold rolled steel with nickel plating |
| 45 mm boring pattern |
| 2-stop action |
| Compatible with 600 Series Plates |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 1750.0179.25 |
|---|---|
| Closing | Soft-close |
| Cycles | 100,000+ |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Half Cranked |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA Friendly | No |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Half Overlay |
| Hinge Crank Amount | 9 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 1750 Series |
| Finish | Polished Nickel |
| Overall Length | 72 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Patent | US 9,169,681 B2, US 9,617,773 B2, US 10,081,975 B2 |
| Certification | ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012 |
| Installation | Press-in 8 mm Dowels |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002550987 |
