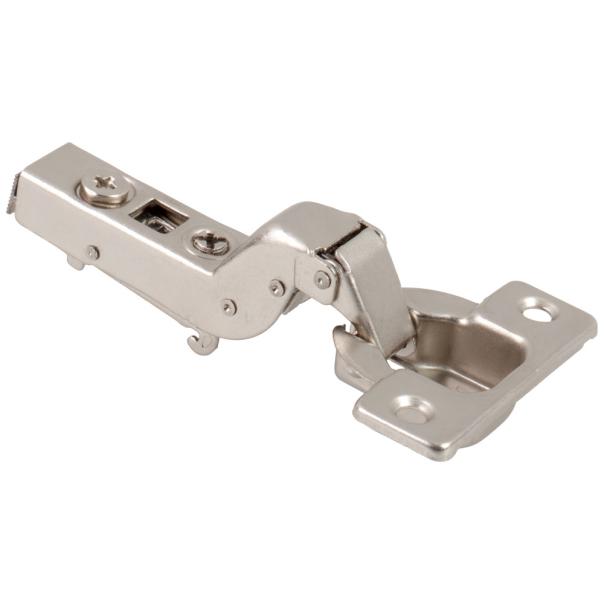

HR MAX™ 110° Heavy Duty Inset Cam Adjustable Soft-close Hinge without Dowels
List Price
$5.85
In Stock
Part
700.0537.25
List Price
Description
HR Max = Quality backed by Lifetime warranty Heavy duty spring and patented linkage system All metal concealed damper provides a life time of worry-free use 2-stop action Woodwork Institute Listed Product 15 mm Crank
More Information
| FEATURES |
|---|
| Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications |
| Lever-top available: Provides toolless installation and removal |
| Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play |
| 45 mm boring pattern |
| Compatible with 600 Series Plates |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 700.0537.25 |
|---|---|
| Closing | Soft-close |
| Cycles | 50,000+ |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Full Cranked |
| Hinge Type | European |
| Inset | Full |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA Friendly | No |
| Length | 67.5 mm |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Inset |
| Hinge Crank Amount | 15 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 700 Series |
| Finish | Polished Nickel |
| Mount Type | Screw |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Patent | 8,819,897 B2 |
| Certification | ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012, Woodwork Institute |
| Installation | No Dowels |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002531825 |
