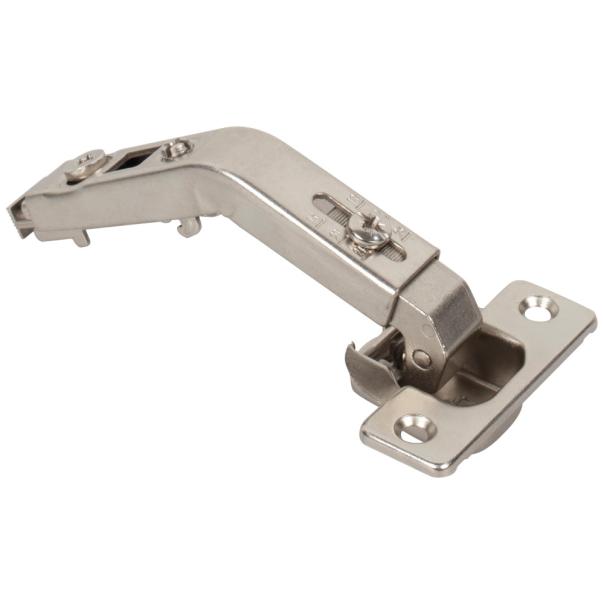

HR MAX™ 105 Degree 18 mm Crank Cam Adjustable Heavy Duty Hinge without Dowels
List Price
$8.22
In Stock
Part
725.0U22.05
List Price
Description
HR Max = Quality backed by Lifetime warranty Standard Duty European Hinge with the performance you need and competitive price point Hinge and plate provide 6-way adjustability Lever-top available: Provides toolless installation and removal Compatible with 600 series mounting plates
More Information
| FEATURES |
|---|
| 6-Way adjustability: Horizontal, depth and vertical with plate |
| Compatible with 600 Series plates |
| NOTES | |
|---|---|
| Full Carton Count | 100 |
| Inner Carton Count | 100 |
Details
| Item Number | 725.0U22.05 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Pie Corner |
| Hinge Type | European |
| Mount Centers | 46 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA Friendly | No |
| Degree of Opening | 105° |
| Overlay | Pie Corner |
| Hinge Crank Amount | 19 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 725 Series |
| Finish | Polished Nickel |
| Hinge Cup Diameter | 36 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Warranty Period | Limited Lifetime |
