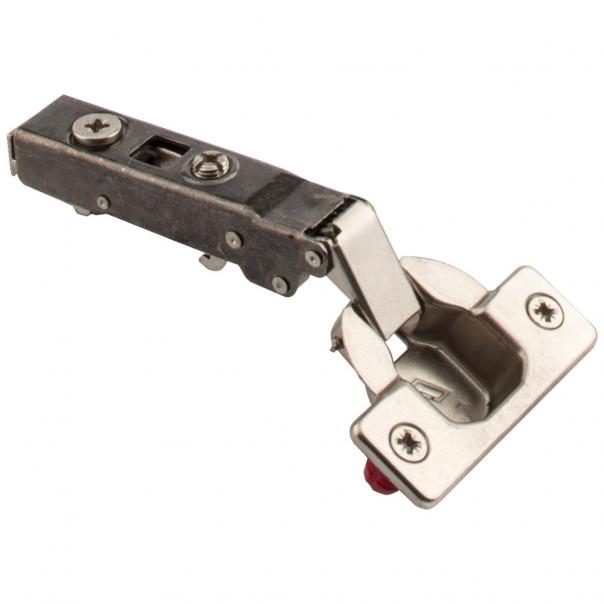

125° Commercial Grade Full Overlay Cam Adjustable Self-close Hinge with Press-in 8 mm Dowels

List Price $5.30
In Stock
Part
900.0U84.05
List Price
Description
  • Patented Heavy Duty hinge designed specifically for rugged commercial use
  • Supports framed or frameless applications
  • Grade 2 ANSI/BHMA certified to 2X ANSI 100,000 cycles
  • 0 mm Crank
  • More Information

    Features
    FEATURES
    Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
    Lever-top available: Provides toolless installation and removal
    Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
    6-Way adjustability: Horizontal, depth and vertical with plate
    Cold rolled steel with stylish pewter plating
    2 stop action
    Compatible with 600 Series Plates
    Notes
    NOTES
    Full Carton Count 200
    Inner Carton Count 200

    Details

    Details
    Item Number 900.0U84.05
    Closing Self-close
    Hinge Cup Bore Depth 11.2 mm
    Arm Type Straight Arm
    Hinge Type European
    Mount Centers 45 mm
    Type Faceframe or Frameless
    Pivot Type Dual
    ADA Friendly No
    Degree of Opening 125°
    Overlay Full Overlay
    Hinge Crank Amount 0 mm
    Hinge Dowels Press-in
    Overlay Adjustment +2 mm, -2 mm
    Depth Adjustment +3 mm, -2 mm
    Adjustment Type Cam
    Brand Hardware Resources
    Series 900 Series
    Finish Dark Nickel
    Overall Length 68 mm
    Hinge Cup Diameter 35 mm
    Material Steel
    Patent 8,819,897 B2
    Installation Press-in 8 mm Dowels
    Mount Type Press-in
    Warranty Period Limited Lifetime
    UPC Code 840002532174
