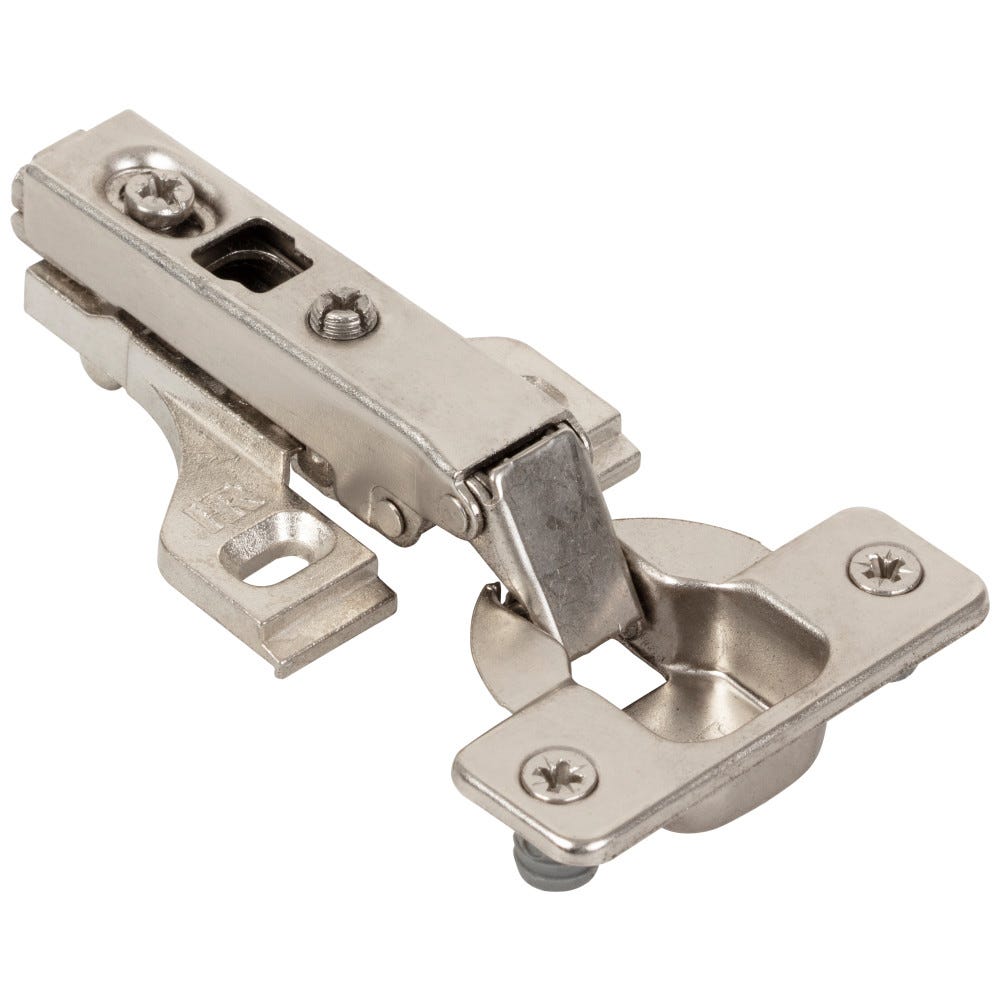

Pre-assembled 110degree Hinge (Screw Adjust) with 3mm Face Frame Plate.
List Price
$2.65
In Stock
Part
500.0134.05
List Price
Description
Pre-assembled 110degree Hinge (Screw Adjust) with 3mm Face Frame Plate. Includes hinge 500.0171.05 with plate 400.3454.65.
More Information
| FEATURES |
|---|
| 6-Way adjustability: Horizontal, depth and vertical with plate |
| NOTES | |
|---|---|
| Full Carton Count | 100 |
| Inner Carton Count | 100 |
Details
| Item Number | 500.0134.05 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Straight Arm |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Recommended Screws | #6 x 5/8” flat head wood screws |
| Cabinet Type | Faceframe or Frameless |
| Plate Height | 3 mm |
| Pivot Type | Dual |
| ADA Friendly | No |
| Packaging Type | Small Package |
| Degree of Opening | 110° |
| Overlay | Full Overlay |
| Hinge Crank Amount | 0 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Vertical Adjustment | +/- 3.5 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Screw |
| Sold By | Each |
| Brand | Hardware Resources |
| Series | 500 Series |
| Finish | Polished Nickel |
| Mount Type | Press-in |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Installation | Press-in 8 mm Dowels |
| Warranty Period | Limited Lifetime |
