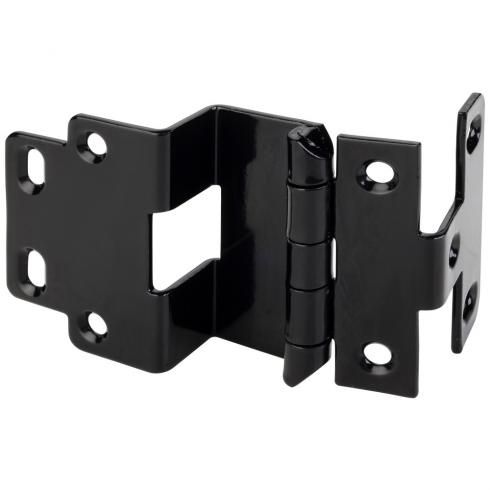

Institutional 5-Knuckle Non-Mortise Cabinet Hinge

List Price $4.25
Stock In stock
Only %1 left
Part
HR00765K
List Price
Description
  • Conforms to ANSI/BHMA Grade 1 Requirements
  • Hospital tips, 2-3/4” overall height
  • Drilled knuckle inner diameter
  • More Information

    Features
    FEATURES
    Slotted screw holes for vertical and horizontal adjustment
    Hospital tips, 2-3/4" overall height
    32 mm system hole pattern with 37 mm setback
    Countersunk screw holes for recommended #8 flat head or Euro screws
    Stainless steel #8 x 3/4" flathead screw available (8X347-2)
    Notes
    NOTES
    Full Carton Count 108
    Inner Carton Count 108

    Details

    Details
    Item Number HR00765K
    Number of Knuckles 5
    De-mountable No
    Hinge Type Institutional Hinge
    Recommended Screws Stainless steel #8 x 3/4” flathead screw
    Pivot Type Single
    ADA Friendly No
    Overlay 3/4"
    Brand Hardware Resources
    Attachment Type Screw-in
    Installation Screw
    Mount Type Screw
    Warranty Period Limited Lifetime
